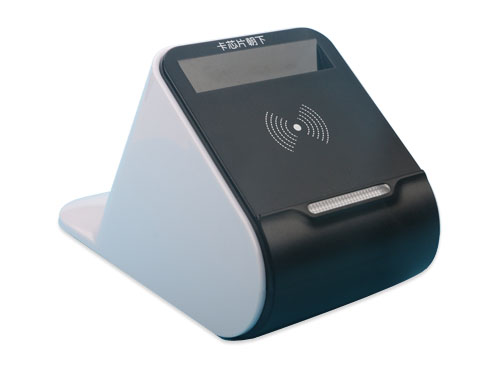

- VQ-240BZ USB Smart&RFID Card Reader
- 【Brief】：
Feature
u Support CPU cards and memory contact cards
u Support ISO14443 Type A&B and MIFARE contactless cards
u Compatible ISO7816, EMV2000 L1
u 2 PSAM cards built-in
u Operation responded by LED
u Support DES/3DES encrypting function
u Mini USB 2.0 compliant
- 【Series】：Dual interface reader
- Description
-
Specification
Item
Description
Smart card standard
Standards: ISO7816, PBOC2.0, EMV2000 L1
smart card connector and slot: 1 set
Card types: ISO7816 Memory cards: SLE4428, SLE4442,
AT24C01,AT24C02,AT24C04,AT24C08、AT24C16
Life of connector: 100,000 times pass
smart card slot: stronger side mechanical design from wrong insertion
RFID card standard
Standards: ISO 14443 Type A & B, MIFARE cards
Operating frequency: 13.56 MHZ
Operating Distance: 0~50mm
Card types: ISO14443 Type A&B, MIFARE cards
PSAM card
0~2 PSAM card support
I/O controls
Operation responded by LED
Interface
Mini USB2.0
Operating voltage
DC +4.75V~ +5.25V / 250mA
Dimension (mm)
133 x 79 x 81
OperatingTemperature
0 ~ 50°C
Operating systems
Windows XP, Vista, 2003/2008 Server, Windows 7
